ECUMaster EMU T04R

#PHPJZS147 Finally got a full Dyno Tune!

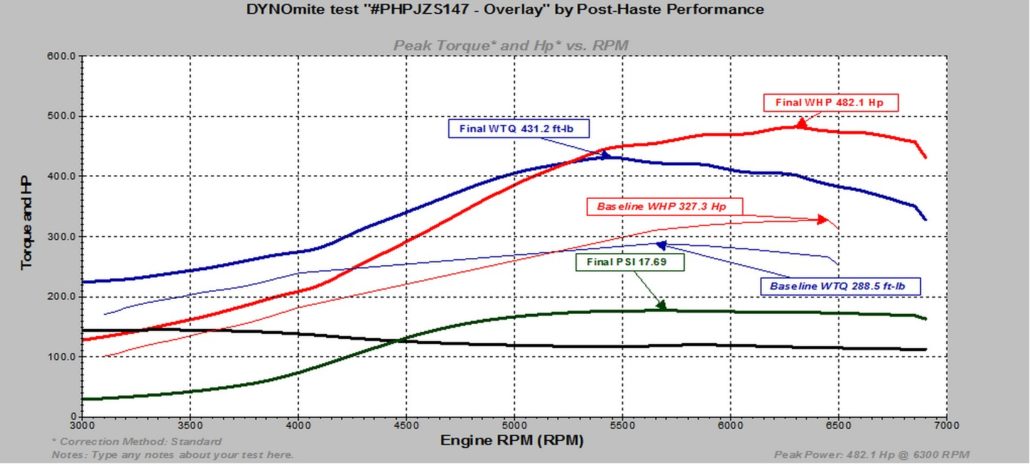

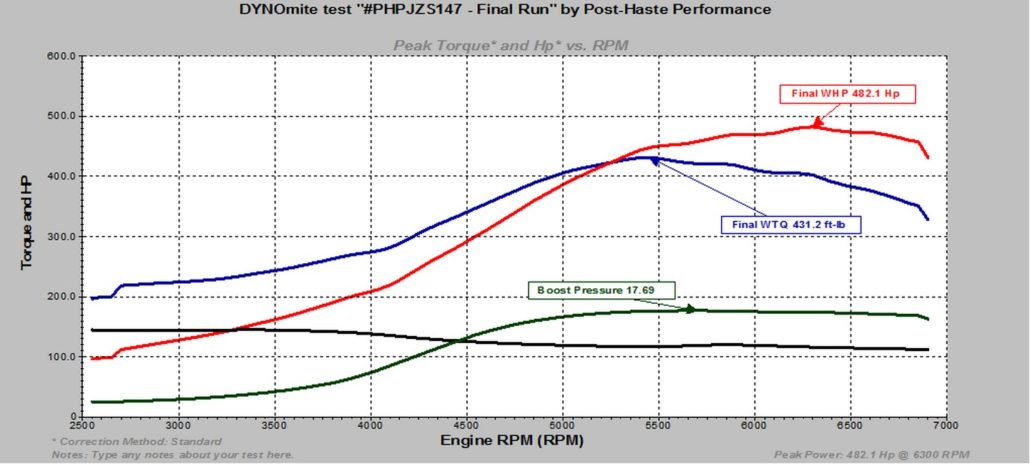

Final Numbers are 480WHP & 430WTQ

Our Aristo is setup with an ECUMaster EMU. We have now dialed in some of the EMU’s more advanced features such as Dual Knock Control, Boost Control and Wideband Closed Loop Fueling. Our power goals were set very early on in the build for a daily, reliable 450WHP. We we’re able to reach and slightly surpass our goals with around 18PSI of boost running 94 Octane Pump Gas. So far the Automatic Transmission has held up to the power but this is most likely the weakest link – Only time will tell how long that lasts.

Future plans include a Rebuilt Auto Trans, Higher Stall Torque Converter and Water/Meth Injection. That may be some time down the road so for right now we’re calling the #PHPJZS147 project complete and look forward to enjoying it throughout the summer!

Build Link:
Introduction to #PHPJZS147
Fuel System Upgrades
ECUMaster EMU Install
PHP Dyno Tune
