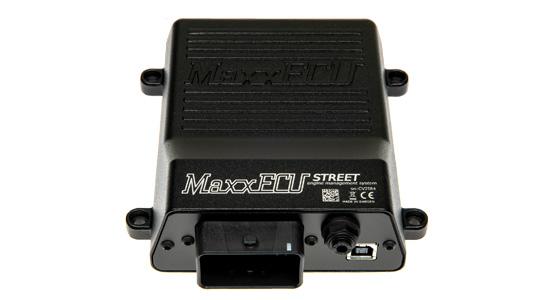

MaxxECU Street

CAD $1,301.90CAD $1,568.95

  • Advanced entry-level engine control system for up to 6 sequential cylinders. Up to 12 in wasted spark
  • Faster and easier tuning with built-in wideband lambda and a built-in MAP-sensor up to 3 bar / 43.5 psi of boost.
  • Get started faster with the easy-to-use MTune PC-software
SKU: maxxecustreet Category:

Description

Compare MaxxECU’s

Target engines for MaxxECU STREET
  • All 1-12 cylinder engines (4-stroke)
  • Up to 6 cylinders fully sequentially
  • Up to 12 cylinders in wasted spark
MaxxECU STREET inputs
  • Intake air temperature sensor (IAT)
  • Coolant temperature sensor (CLT)
  • Throttle position sensor (TPS)
  • Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2, 4.9
  • 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
  • 2 extra temperature sensors. Can be used as switches or to control additional functions
  • 2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
  • 2 digital inputs used for example for speed sensors (Hall) or switches
  • Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
MaxxECU STREET outputs
  • 6 injectors outputs. High impedance only
  • 6 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
  • 4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)
MaxxECU STREET technical
  • CAN bus (additional wires required)
  • USB communication for tuning with MTune
  • 8MB memory for internal logging, up to 1000Hz
  • Supply voltage 8-22V
  • ARM Cortex-M3 120MHz main processor
  • Resolution on ignition: 0.1 degrees
  • Resolution on injectors: 0.001 ms
  • Updates the fuel and ignition calculations 2000 times per second
  • The fastest PC communication on the market
  • Weight: 520g
  • 140x134x42mm (including mounting points, excluding connector)
  • Aluminium casing

Additional information

Weight 2 lbs
Dimensions 24 × 12 × 6 in
Level

Basic, Standard, Premium
